A Deep Dive into Induction Furnace Components: What Makes Them Tick?

Induction furnaces, which have dramatically transformed the metalworking sector, offer a significantly enhanced approach to melting metals—one that is not only more efficient and environmentally sustainable but also considerably safer. Within this technological landscape, the Intermediate Frequency Coreless Induction Furnace occupies a particularly prominent position, distinguished by its utilization of cutting-edge innovations, comprehensive safety mechanisms, and impressive energy-saving capabilities. In the following discussion, we will delve into the intricate components that make up this sophisticated furnace system, explore how they function, and examine why they have become indispensable tools for modern foundries.

Guangdong Rongke Industrial Equipment Co., Ltd. is at the forefront of induction furnace technology, widely recognized for its unwavering commitment to innovation, exceptional craftsmanship, and strict adherence to the highest standards in the industry.

1. Intermediate Frequency Coreless Induction Furnace: An Overview

A Fusion of Advanced Technology and Premium Materials

The Intermediate Frequency Coreless Induction Furnace, brought to the market by Guangdong Rongke, can be regarded as a testament to modern engineering at its finest. It integrates a series of interactive windows with top-tier components, all of which serve to optimize both operational functionality and production efficiency. From the selection of raw materials to the sophisticated processing techniques employed in its construction, this furnace represents the pinnacle of the industry, ensuring that production processes are not only safer and more stable but also highly energy-efficient.

One of the driving forces behind the furnace’s outstanding performance is the strategic use of advanced materials in its construction. These materials, particularly high-grade metals, significantly enhance both durability and operational stability, drastically reducing the likelihood of mechanical failures, even under extreme operating conditions. In conjunction with state-of-the-art craftsmanship, the furnace offers unparalleled durability, ensuring consistent, long-term performance.

Safety: A Central Feature of Furnace Design

Among the many distinguishing characteristics of the Rongke Intermediate Frequency Coreless Induction Furnace is its pronounced emphasis on safety. The system incorporates a proprietary IDE furnace leakage alarm, a patented innovation that has been rigorously tested and certified according to the EU’s stringent CE safety standards. This alarm system is designed to ensure operational safety and reliability by offering real-time alerts in response to any issues that may arise, such as material leakage or electrical malfunctions.

The highly intelligent design of this furnace makes it particularly well-suited for foundries that prioritize both productivity and worker safety. Its advanced safety mechanisms continuously monitor the operational environment, providing peace of mind to operators who can focus their attention on maximizing production efficiency without having to constantly worry about potential risks.

Unparalleled Energy Efficiency and Production Stability

In addition to its focus on safety, the Rongke furnace is known for its exceptional energy efficiency. By employing advanced components and state-of-the-art technology, the furnace is able to deliver higher output while consuming significantly less energy. This energy-saving feature is particularly important for foundries that are looking to reduce operational costs as well as their environmental impact. Furthermore, the furnace’s carefully engineered design ensures that production processes remain stable and consistent, even under fluctuating operational demands.

2. The Leakage Alarm System: Ensuring Safety and Reliability

Why the Leakage Detection System is Essential

The leakage detection system integrated into the Rongke furnace represents a critical safety feature, designed to ensure the safe and effective operation of the system. The principle behind its operation is both straightforward and highly effective: when molten iron begins to seep through the furnace lining, it makes contact with a current detection electrode, triggering an alarm. Should the leakage reach the coil, the system will issue a second alert, precisely pinpointing the location of the issue.

The real-time detection capabilities of this system are essential for preventing minor problems from escalating into significant hazards, such as fires or extensive equipment damage. By providing early warning signals, the leakage detection system allows maintenance teams to address potential issues before they lead to costly downtime or accidents.

Grounding Alarm Detection: A Layered Approach to Safety

The grounding alarm detection system operates in a manner similar to the leakage detection system but focuses on different aspects of furnace safety. When molten iron penetrates to within 2cm of the coil, the system detects an increase in leakage current directed to the ground. Should the conductivity of the coolant exceed a predefined threshold, the system triggers an alarm.

This multi-tiered safety framework ensures that any irregularity in the furnace’s operation is detected at the earliest possible stage, thus significantly reducing the likelihood of accidents. The combination of these sophisticated alarm systems further underscores Guangdong Rongke’s dedication to providing furnaces that are both safe for operators and reliable for production.

Compliance with Certified Safety Standards

Guangdong Rongke’s innovative design has earned the prestigious EU CE safety system certification, further solidifying the company’s reputation for reliability. This certification provides customers with the assurance that the furnace has undergone exhaustive safety evaluations and meets the stringent safety standards required for industrial applications.

3. Energy Efficiency Optimized Through Advanced Coil Technology

The Coil: The Furnace’s Beating Heart

Often referred to as the “heart” of an induction furnace, the coil in the Rongke furnace has been meticulously engineered to optimize energy efficiency. Constructed from TU1 grade oxygen-free copper supplied by Chinalco Luoyang Copper Co., Ltd., this coil is designed to offer superior conductivity and durability. These attributes enable the furnace to operate at peak performance levels while minimizing energy waste.

The coil’s thick-walled copper tubing, manufactured through a cold extrusion process, further enhances the furnace’s energy efficiency. When paired with the furnace’s innovative double coil technology, it ensures that heat is generated and distributed evenly, leading to a more efficient and consistent melting process.

The Impact of Double Coil Technology on Performance

Double coil technology is another groundbreaking feature that sets the Rongke furnace apart from its competitors. By distributing the electrical current more evenly, this technology helps to minimize energy losses, leading to an improved melting process. Additionally, it reduces wear and tear on the furnace’s components, which in turn extends the operational lifespan of the system.

Leading the Way in Energy Conservation

Guangdong Rongke has consistently been at the forefront of energy-saving initiatives, focusing on the continuous refinement of coil design and the use of high-quality materials. This dedication to reducing energy consumption, while maintaining optimal furnace performance, allows foundries to cut operational costs while also achieving their sustainability objectives.

4. Magnet Yoke Technology: Minimizing Magnetic Loss for Maximum Efficiency

Advanced Magnetic Field Control with Magnet Yoke

Magnet yoke technology plays an essential role in regulating the magnetic fields generated within the furnace. In the Rongke system, the magnet yoke is made from high-quality cold-rolled directional silicon steel sheets, which have been specifically designed to minimize magnetic loss. By reducing these losses to less than 105, the yoke facilitates more efficient energy transfer to the molten bath.

The magnet yoke also serves to concentrate the magnetic field towards the molten metal, preventing energy from dispersing unnecessarily. This focused heating process greatly improves the overall energy efficiency of the furnace.

A Dual Function: Cooling and Structural Support

A unique feature of the magnet yoke is its ability to combine cooling and support functions. Water flows along both sides of the yoke, ensuring balanced heat dissipation. This not only prolongs the working life of the furnace but also renders the system virtually maintenance-free.

Enhanced Efficiency and Durability

The use of premium silicon steel sheets, coupled with a first-rate design, results in reduced magnetic losses and lower heat production. These advantages significantly increase the overall efficiency of the furnace, extending its operational life and minimizing the need for frequent maintenance or repairs.

5. Supporting Systems: Precision and Operational Stability

Hydraulic Tilting Furnace Drive System

The tilting furnace drive system in the Rongke induction furnace operates via a hydraulic oil pump system that includes both an active and a standby unit. This ensures continuous operation, even in the event of a failure in one of the pumps. All hydraulic cylinders are equipped with explosion-proof valves and protective covers, providing an additional level of safety.

Consistent Cooling for Optimal Performance

The furnace’s cooling system utilizes enclosed distilled water, which helps to maintain consistent operating temperatures. This system is directly linked to the leakage alarm, ensuring that any anomalies are detected promptly. The use of high-quality carbon-free rubber pipes from the German brand Continental ensures that the system remains durable and reliable, even under high-temperature conditions.

Environmental Control Through a Dust Hood

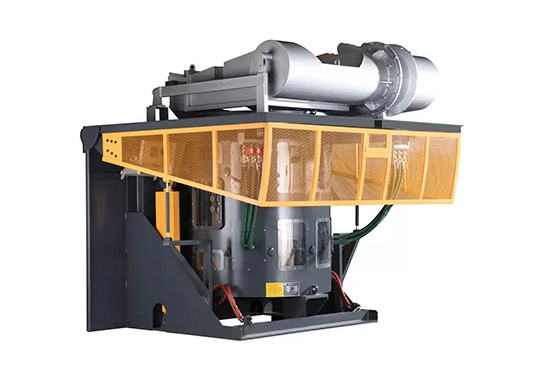

The furnace also features a 360-degree dust hood, driven by double hydraulic rods. This ensures that the system operates smoothly while providing strong suction to minimize environmental contamination. The multi-directional opening and closing functionality makes it easy to maintain a clean and safe working environment.

Conclusion

The Intermediate Frequency Coreless Induction Furnace, developed by Guangdong Rongke Industrial Equipment Co., Ltd., represents the apex of modern furnace technology. Its advanced safety features, innovative coil and magnet yoke technologies, and superior attention to detail make it an ideal choice for foundries seeking both performance and reliability. As the metalworking industry continues to evolve, induction furnaces like those offered by Rongke will play an increasingly vital role in providing safer, more efficient, and environmentally sustainable solutions.
